Calculate geometric eigenmodes

To calculate the geometric eigenmodes of a brain surface using the method outlined in Pang et al. (2023), we will first initialise the solver with a path to a surface file. Since neuromodes provides triangular surface meshes for human, macaque, and marmoset cortices, we can provide these as follows:

from importlib.resources import files, as_file
from nsbutils.plotting import plot_surf
from nsbutils.utils import unmask
from neuromodes import EigenSolver
from neuromodes.io import fetch_surf

# Load cortical surface mesh
mesh, medmask = fetch_surf()

# Initialise solver with surface
solver = EigenSolver(mesh)

Note that by default, fetch_surf will return the human left hemisphere fsLR-32k midthickness mesh and medial wall mask.

Next, we can compute eigenmodes and eigenvalues by solving the eigenvalue problem of the Laplace-Beltrami operator on the surface mesh:

solver.solve(100)

<neuromodes.eigen.EigenSolver at 0x18482629fd0>

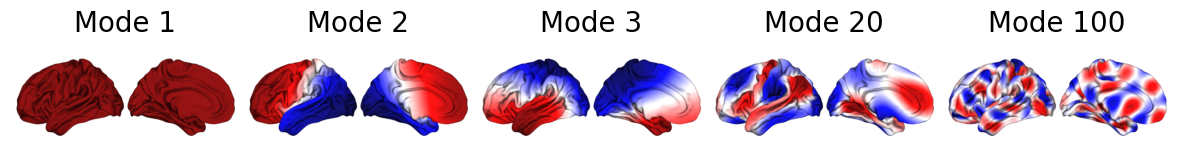

Note that we specified the first 100 eigenmodes and eigenvalues, which are then stored in the emodes and evals attributes. We can visualize a few modes by using plot_surf from our sister package nsbutils:

lh_surfpath = files('neuromodes.data') / 'sp-human_tpl-fsLR_den-32k_hemi-L_midthickness.surf.gii'
with as_file(lh_surfpath) as lh_surfpath:
    plot_surf(lh_surfpath, solver.emodes[:,[0,1,2,19,99]], labels=['Mode 1', 'Mode 2', 'Mode 3', 'Mode 20', 'Mode 100'], cmap='seismic_r')

We can see that the modes have been calculated, but incorrectly included the medial wall. To exclude the medial wall, we can either use a surface file that has the medial wall removed, or provide a boolean mask when initialising the solver. The same mask is then provided to our unmask function (also from nsbutils) to reintroduce the medial wall for plotting. We can try this now with a marmoset surface:

# Load medial wall mask
marmo_mesh, marmo_medmask = fetch_surf(species='marmoset')
marmo_solver = EigenSolver(marmo_mesh, mask=marmo_medmask)

# Solve the eigenvalue problem
marmo_solver.solve(100)

# Visualise on the cortical surface

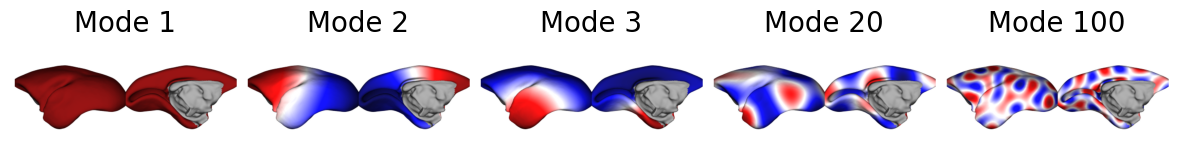

marmodes_unmasked = unmask(marmo_solver.emodes[:,[0,1,2,19,99]], marmo_medmask)
marmo_lh_surfpath = files('neuromodes.data') / 'sp-marmoset_tpl-fsLR_den-32k_hemi-L_midthickness.surf.gii'
with as_file(marmo_lh_surfpath) as marmo_lh_surfpath:
    plot_surf(marmo_lh_surfpath, marmodes_unmasked, labels=['Mode 1', 'Mode 2', 'Mode 3', 'Mode 20', 'Mode 100'], cmap='seismic_r')
